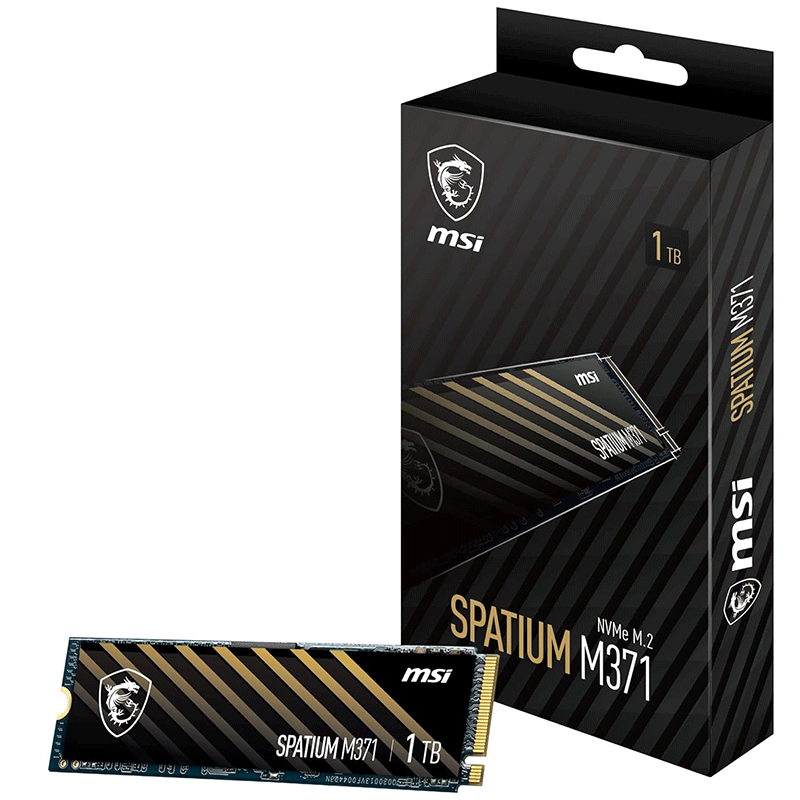

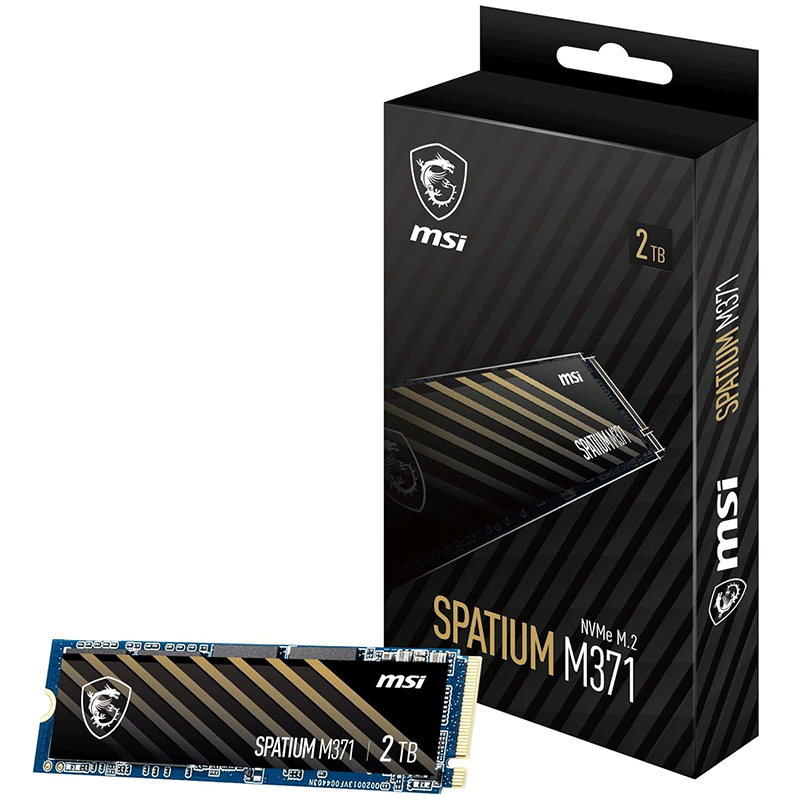

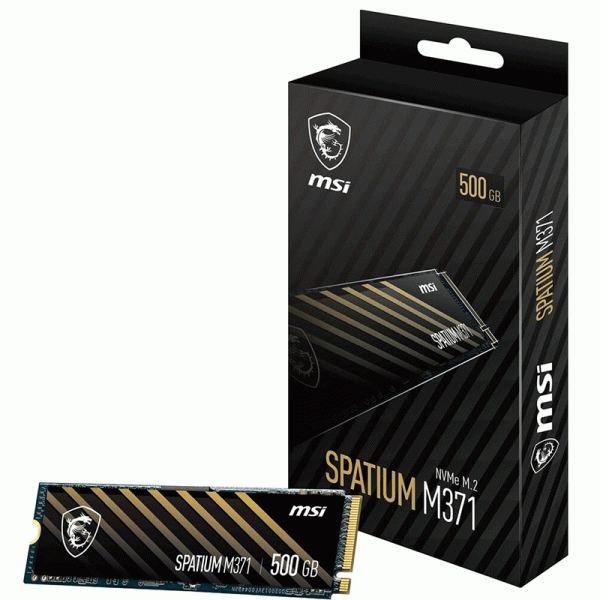

MSI SPATIUM M371 NVMe M.2

Description

• MODEL NAME SPATIUM M371 NVMe M.2
• CAPACITY 500GB            1TB     2TB
• CONTROLLER PHISON E13T
• FLASH MEMORY 3D NAND
• FORM FACTOR 2 2280
• INTERFACE PCIe Gen3x4, NVMe 1.3
• COMPATIBILITY PCIe Gen3 / Gen2 / Gen1
• DIMENSIONS 00mm (L) x 22.00mm (W) x 2.15mm (H)
• SEQUENTIAL READ UP TO (MB/S) 2200   2350   2350
• SEQUENTIAL WRITE UP TO (MB/S) 1150   1700   1900
• RANDOM READ 4KB UP TO (IOPS) 60,000            90,000            135,000
• RANDOM WRITE 4KB UP TO (IOPS) 200,000          280,000          350,000
• MAXIMUM OPERATING POWER (W) 4       3.2       3.4
• IDLE POWER PS3 (MW) 30
• LOW POWER L1.2 (MW) 5
• OPERATING TEMPERATURES 0°C – 70°C
• STORAGE TEMPERATURES -40°C – 85°C
• TERABYTES WRITTEN (TBW) 110     210     480
• MEAN TIME BETWEEN FAILURE (MTBF) Up to 1,500,000 Hours
• ADVANCED FEATURES TRIM (Performance Optimization, OS Support required)
• SMART (Self-Monitoring, Analysis and Reporting Technology)
• LDPC (Low Density Parity Check) ECC Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)
• Pyrite (Encryption, Data Security)
