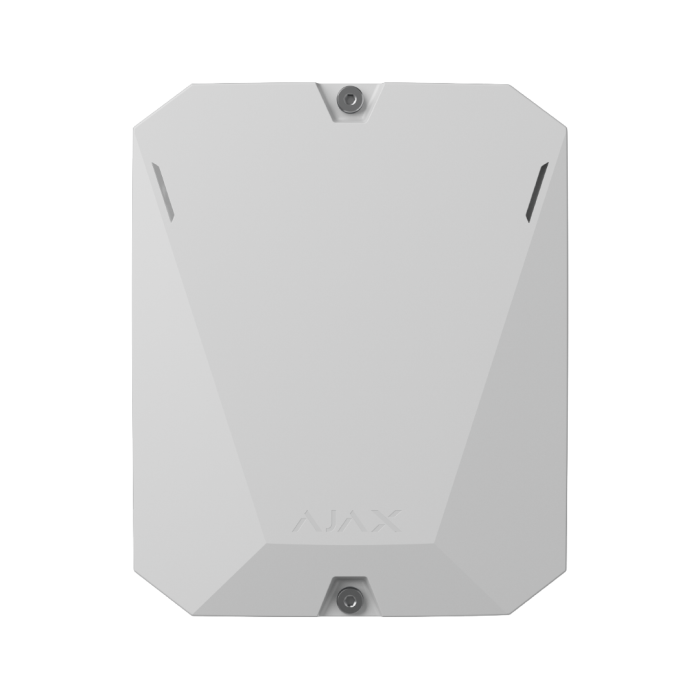

Ajax Hub BP

Ajax devices

up to 100

Specifically:

• up to 5 range extenders;
• up to 10 sirens;
• up to 50 keypads with a built-in buzzer.

Ajax NVRs

up to 36

Ajax cameras

up to 224 via Ajax NVRs and up to 492 standalone

Third-party IP cameras

up to 10 when using RTSP via SDK

up to 224 when using ONVIF via Ajax NVRs

Users

up to 50

• Any number of admin users within the hub limit.
• PRO accounts for installers.
• PRO accounts for installation and monitoring companies.

Automation scenarios

up to 32

• By alarm.
• By schedule.
• By arming/disarming.
• By temperature, humidity, CO₂ concentration.
• By pressing Button.
• By touching LightSwitch.

Security groups

up to 9

Rooms

up to 50

Event log

up to 1,000 events

Events are saved in the non-volatile onboard flash memory.

 Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz

868.0–868.6 MHz

868.7–869.2 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 2,000 m

Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

Polling interval

from 12 s to 300 s

Adjusted by a PRO or user with admin rights in Ajax apps.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

 Wings communication technology

Proprietary wireless communication technology to transmit photos.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Data packages reload in case of transmission errors.
• Photo delivery check.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio communication range

up to 2,000 m

Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.
