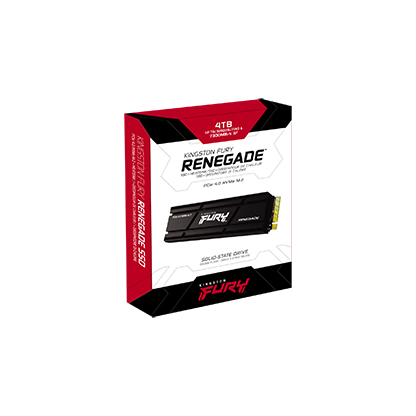

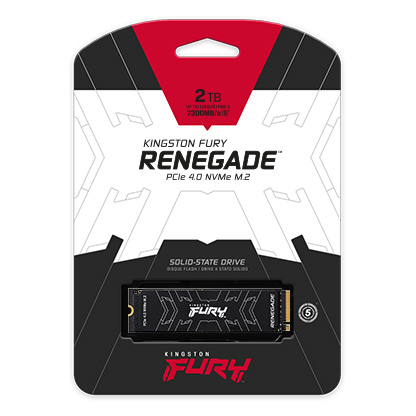

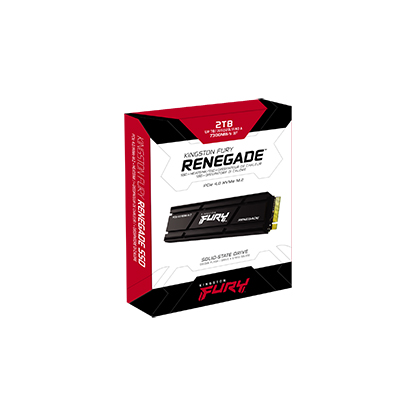

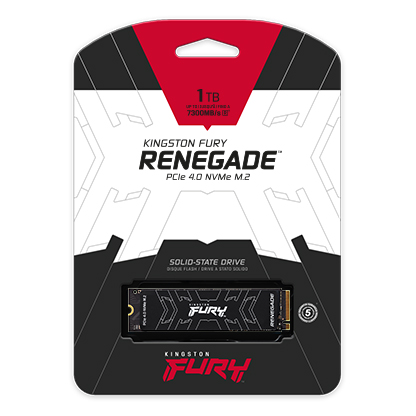

Kingston FURY Renegade PCIe 4.0 NVMe M.2 SSD

Description

• Form factor 2 2280
• Interface PCIe 4.0 x4 NVMe
• Capacities2 500GB, 1TB, 2TB, 4TB
• Controller Phison E18
• NAND 3D TLC
• Sequential read/write1 500GB – 7,300/3,900MB/s
• 1TB – 7,300/6,000MB/s
• 2TB – 7,300/7,000MB/s
• 4TB – 7,300/7,000MB/s
• Random 4K read/write1 500GB – up to 450,000/900,000 IOPS
• 1TB – up to 900,000/1,000,000 IOPS
• 2TB – up to 1,000,000/1,000,000 IOPS
• 4TB – up to 1,000,000/1,000,000 IOPS
• Total Bytes Written (TBW)3 500GB – 500TBW
• 1TB – 1.0PBW
• 2TB – 2.0PBW
• 4TB – 4.0PBW
• Power consumption 500GB – 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write
• 1TB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write
• 2TB – 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write
• 4TB – 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write
• Storage temperature -40°C~85°C
• Operating Tempetemperaturerature 0°C~70°C
• Dimensions Heat spreader:
• 80mm x 22mm x 2.21mm (500GB-1TB)
• 80mm x 22mm x 3.5mm (2TB-4TB)
• Heatsink:
• 80mm x 23.67mm x 10.5mm
• Weight Heat spreader:
• 500GB-1TB – 7g
• 2TB-4TB – 9.7g
• Heatsink:
• 500GB-1TB – 32.1g
• 2TB-4TB – 34.9g
• Vibration operating 17G peak (7-800Hz)
• Vibration non-operating 20G peak (20-1000Hz)
• MTBF 2,000,000 hours
