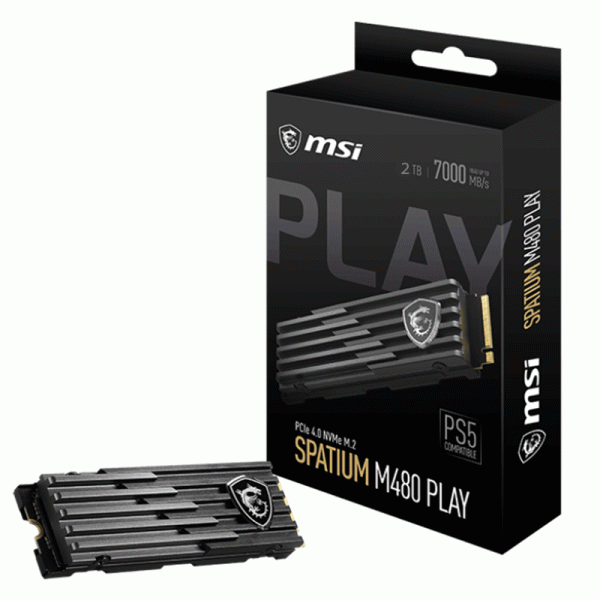

MSI SPATIUM M480 PCIe 4.0 NVMe M.2 2TB PLAY

Description

• MODEL NAME SPATIUM M480 PCIe 4.0 NVMe M.2 PLAY
• CAPACITY       2TB
• CONTROLLER PHISON E18
• FLASH MEMORY 3D NAND
• DRAM CACHE                                               2GB DDR4
• FORM FACTOR 2 2280
• INTERFACE PCIe Gen4x4, NVMe 1.4
• COMPATIBILITY PCIe Gen4 / Gen3 / Gen2 / Gen1
• DIMENSIONS 40mm (L) x 24.00mm (W) x 10.70mm (H), PS5 Compatible
• SEQUENTIAL READ UP TO (MB/S)                    7000
• SEQUENTIAL WRITE UP TO (MB/S)                 6800
• RANDOM READ 4KB UP TO (IOPS)               650,000
• RANDOM WRITE 4KB UP TO (IOPS)              700,000
• MAXIMUM OPERATING POWER (W                  8.2
• IDLE POWER PS3 (MW)                                    22
• LOW POWER L1.2 (MW) 3
• OPERATING TEMPERATURES 0°C – 70°C
• STORAGE TEMPERATURES -40°C – 85°C
• TERABYTES WRITTEN (TBW)         1400
• MEAN TIME BETWEEN FAILURE (MTBF) Up to 1,600,000 Hours
• ADVANCED FEATURES TRIM (Performance Optimization, OS support required)
• SMART (Self-Monitoring, Analysis and Reporting Technology)
• LDPC (Low Density Parity Check) ECC Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)
• AES256/Pyrite (Encryption, Data Security)AES256/Pyrite (Encryption, Data Security)
