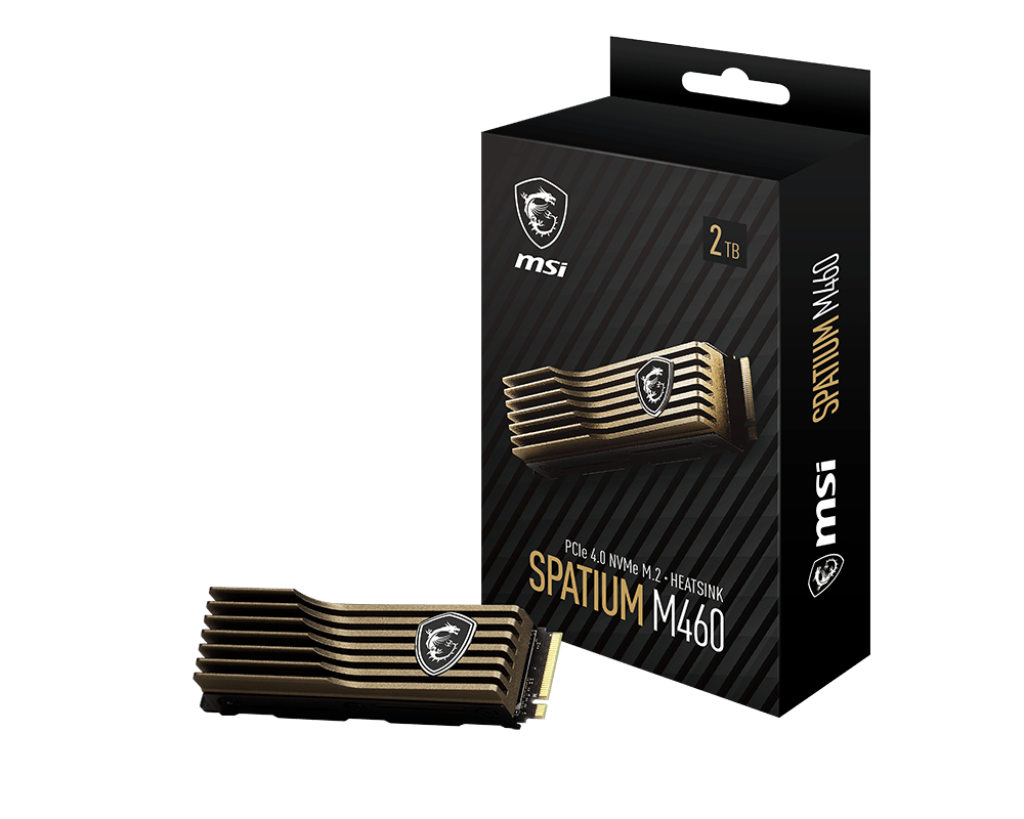

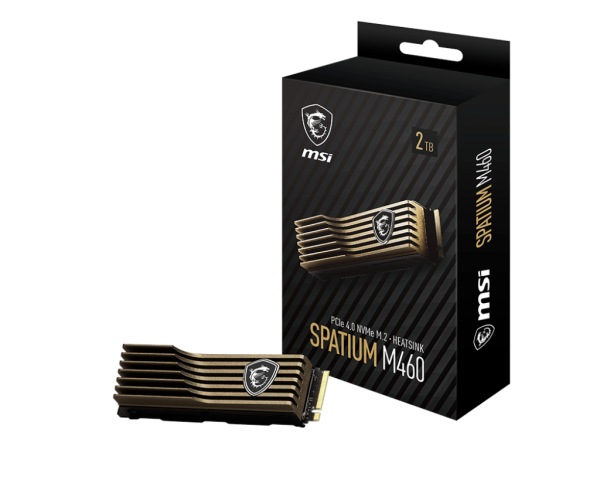

MSI SPATIUM M460 PCIe 4.0 NVMe M.2 HS

Description

• MODEL NAME SPATIUM M460 PCIe 4.0 NVMe M.2 HS
• CAPACITY             1TB     2TB
• CONTROLLER PHISON E21T
• FLASH MEMORY 3D NAND
• FORM FACTOR 2 2280
• INTERFACE PCIe Gen4x4, NVMe 1.4
• COMPATIBILITY PCIe Gen4 / Gen3 / Gen2 / Gen1
• DIMENSIONS 00mm (L) x 22.00mm (W) x 2.15mm (H) (w/o heatsink)
• 40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink)
• SEQUENTIAL READ UP TO (MB/S) 4650   5000   5000   4900
• SEQUENTIAL WRITE UP TO (MB/S) 1900   3750   4500   4400
• RANDOM READ 4KB UP TO (IOPS) 220,000          440,000          550,000          525,000
• RANDOM WRITE 4KB UP TO (IOPS) 470,000          920,000          950,000          950,000
• MAXIMUM OPERATING POWER (W) 6       4.0       4.3       5.2
• IDLE POWER PS3 (MW) 50
• LOW POWER L1.2 (MW) 5
• OPERATING TEMPERATURES 0°C – 70°C
• STORAGE TEMPERATURES -40°C – 85°C
• TERABYTES WRITTEN (TBW) 200     300     600     1200
• MEAN TIME BETWEEN FAILURE (MTBF) Up to 1,500,000 Hours
• LIMITED WARRANTY 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
• ADVANCED FEATURES TRIM (Performance Optimization, OS Support required)
• SMART (Self-Monitoring, Analysis and Reporting Technology)
• LDPC (Low Density Parity Check) ECC Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)
• Pyrite (Encryption, Data Security)
