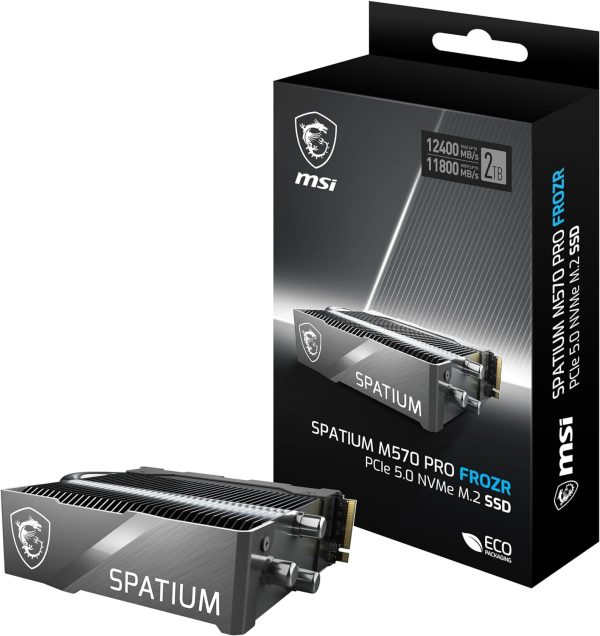

MSI SPATIUM M570 PRO PCIe 5.0 NVMe M.2 2TB FROZR

Description

• MODEL NAME SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR
• CAPACITY                 2TB
• CONTROLLER PHISON E26
• FLASH MEMORY 3D NAND
• DRAM CACHE 4GB LPDDR4
• FORM FACTOR 2 2280
• INTERFACE PCIe Gen5x4, NVMe 2.0
• COMPATIBILITY PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
• DIMENSIONS 80mm (L) x 24.00mm (W) x 71.65mm (H)
• Recommended installation space: up to 22 x 110 mm available
• SEQUENTIAL READ UP TO (MB/S)                 12,400
• SEQUENTIAL WRITE UP TO (MB/S)                 11,800
• MAXIMUM OPERATING POWER (W)                 5
• IDLE POWER PS3 (MW) 144
• LOW POWER L1.2 (MW) 85
• OPERATING TEMPERATURES 0°C – 70°C
• STORAGE TEMPERATURES -40°C – 85°C
• TERABYTES WRITTEN (TBW)                 1400
• MEAN TIME BETWEEN FAILURE (MTBF) Up to 1,600,000 Hours
• ADVANCED FEATURES TRIM (Performance Optimization, OS Support required)
• SMART (Self-Monitoring, Analysis and Reporting Technology)
• LDPC (Low Density Parity Check) ECC Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)
• AES256/OPAL 2.0 (Encryption, Data Security)
