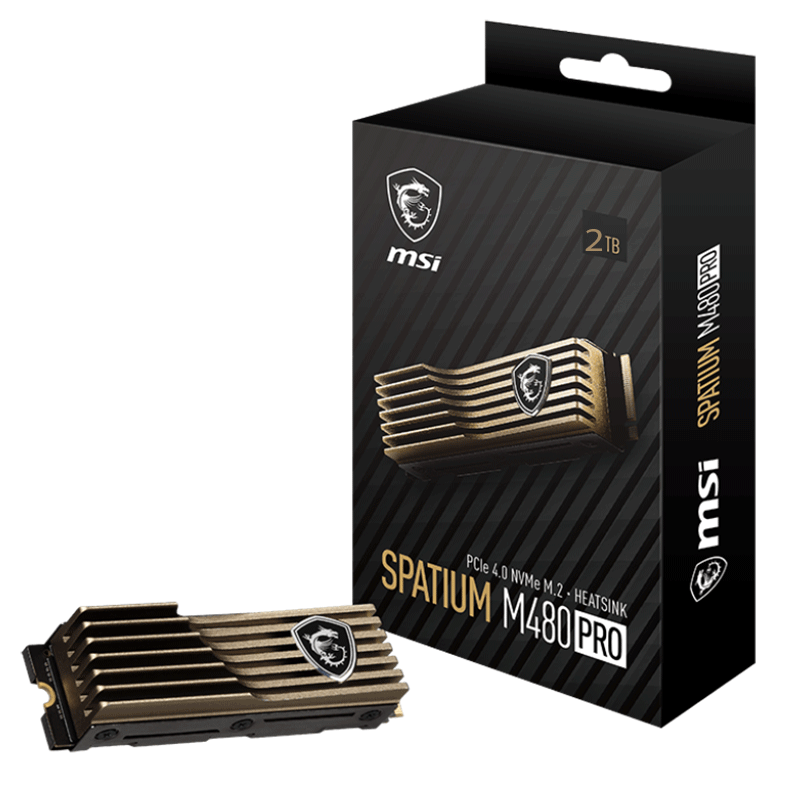

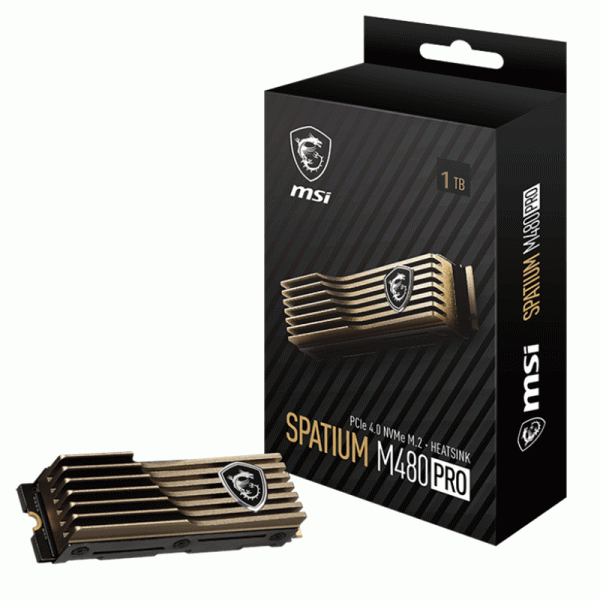

MSI SPATIUM M480 Pro PCIe 4.0 NVMe M.2 HS

Description

• MODEL NAME SPATIUM M480 PRO PCIe 4.0 NVMe M.2 HS
• CAPACITY 1TB        2TB
• CONTROLLER PHISON E18
• FLASH MEMORY 3D NAND
• DRAM CACHE 1GB DDR4           2GB DDR4           2GB DDR4
• FORM FACTOR 2 2280
• INTERFACE PCIe Gen4x4, NVMe 1.4
• COMPATIBILITY PCIe Gen4 / Gen3 / Gen2 / Gen1
• DIMENSIONS 40mm (L) x 23.00mm (W) x 20.40mm (H)
• SEQUENTIAL READ UP TO (MB/S) 7400
• SEQUENTIAL WRITE UP TO (MB/S) 6000     7000     7000
• RANDOM READ 4KB UP TO (IOPS) 750,000               1,000,000           1,000,000
• RANDOM WRITE 4KB UP TO (IOPS) 1,000,000
• MAXIMUM OPERATING POWER (W) 5         10.5       11.3
• IDLE POWER PS3 (MW) 40           45           50
• LOW POWER L1.2 (MW) 3
• OPERATING TEMPERATURES 0°C – 70°C
• STORAGE TEMPERATURES -40°C – 85°C
• TERABYTES WRITTEN (TBW) 700        1400     3000
• MEAN TIME BETWEEN FAILURE (MTBF) Up to 1,600,000 Hours
• ADVANCED FEATURES TRIM (Performance Optimization, OS Support required)
• SMART (Self-Monitoring, Analysis and Reporting Technology)
• LDPC (Low Density Parity Check) ECC Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)
• AES256/Pyrite (Encryption, Data Security)
