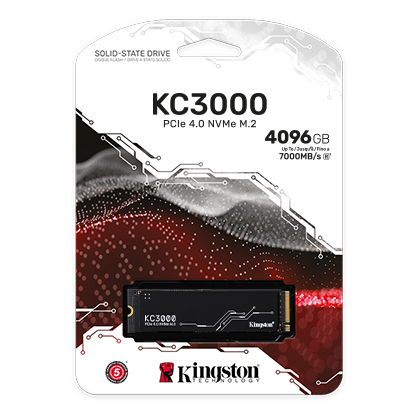

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD

Description

• Form Factor 2 2280
• Interface PCIe 4.0 x4 NVMe
• Capacities2 512GB, 1024GB, 2048GB, 4096GB
• Controller Phison E18
• NAND 3D TLC
• Sequential read/write 512GB – 7,000/3,900MB/s
• 1024GB – 7,000/6,000MB/s
• 2048GB – 7,000/7,000MB/s
• 4096GB – 7,000/7,000MB/s
• Random 4K read/write1 512GB – up to 450,000/900,000 IOPS
• 1024GB – up to 900,000/1,000,000 IOPS
• 2048GB – up to 1,000,000/1,000,000 IOPS
• 4096GB – up to 1,000,000/1,000,000 IOPS
• Total Bytes Written (TBW)3 512GB – 400TBW
• 1024GB – 800TBW
• 2048GB – 1.6PBW
• 4096GB – 3.2PBW
• Power consumption 512GB – 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write
• 1024GB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write
• 2048GB – 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write
• 4096GB – 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write
• Storage temperature -40°C~85°C
• Operating temperature 0°C~70°C
• Dimensions 80mm x 22mm x 2.21mm (512GB-1024GB)
• 80mm x 22mm x 3.5mm (2048GB-4096GB)
• Weight 512GB-1024GB – 7g
• 2048GB-4096GB – 9.7g
• Vibration operating 17G peak (7-800Hz)
• Vibration non-operating 20G Peak (20-1000Hz)
• MTBF 2,000,000 hours
