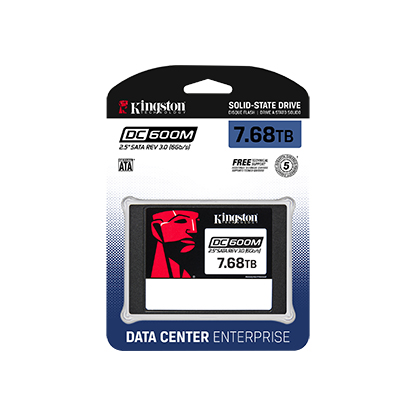

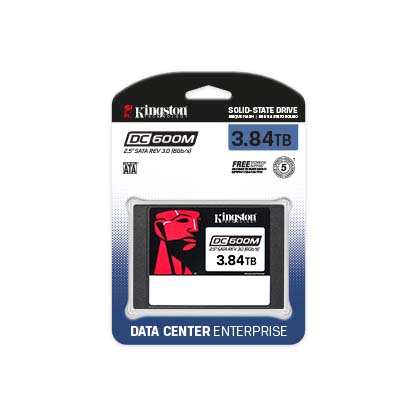

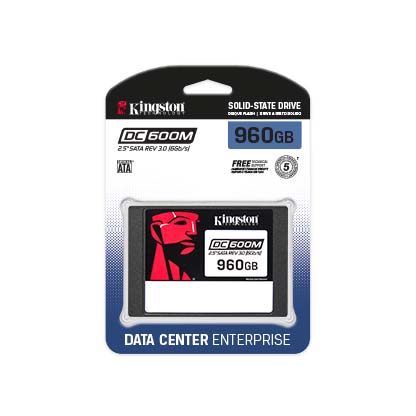

Kingston DC600M 2.5” SATA Enterprise SSD

Description

• Form factor 5 inch
• Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
• Capacities1 480GB, 960GB, 1920GB, 3840GB, 7680GB
• NAND 3D TLC
• Sequential Read/Write 480GB – 560MBs/470MBs
• 960GB – 560MBs/530MBs
• 1,920GB – 560MBs/530MBs
• 3,840GB – 560MBs/530MBs
• 7680GB – 560MBs/530MBs
• Steady-state 4k random read/write 480GB – 94,000/41,000 IOPS
• 960GB – 94,000/65,000 IOPS
• 1920GB – 94,000/78,000 IOPS
• 3840GB – 94,000/59,000 IOPS
• 7680GB – 94,000/34,000 IOPS
• Quality of service (latency)3,4,5(99.999) Read/Write
• 480GB – 180/110 uSec
• 960GB – 3840GB – 200/300 uSec
• 7680GB – 240/170 uSec
• Typical latency – read/write <200 µs / <30 us3,4,5
• Hot-plug capable Static and dynamic wear levelling
• Enterprise SMART tools Reliability tracking, usage statistics, life remaining, wear levelling, temperature
• Hardware-based power loss protection Endurance6 480GB – 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• 960GB – 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• 1920GB – 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• 3840GB – 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• 7680GB – 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• Power consumption Idle: 1.30W
• Average: 1.45W
• Max read: 1.6W
• Max write: 3.6W
• Storage temperature -40℃ ~ 85℃
• Operating temperature 0℃ ~ 70℃
• Dimensions 9mm x 100mm x 7mm
• Weight 34g
• Vibration operating 17G Peak (7–800Hz)
• Vibration non-operating 20G peak (10–2000Hz)
• MTBF 2 million hours
• UBER ≤10 -17
